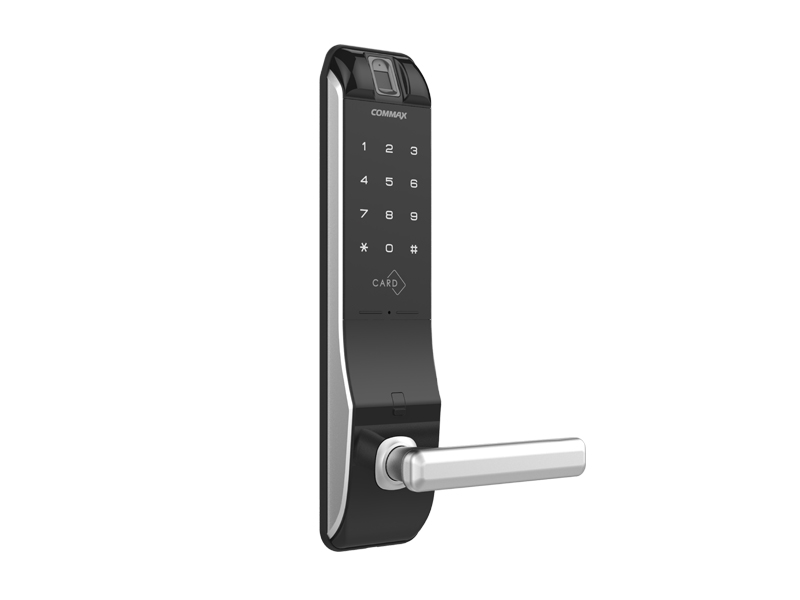

DIGITAL DOORLOCK CDL-210L
- Touch key with easy-to-identify background LED
- 4 unlocking methods: Fingerprint, Password, RFID magnetic card, mechanical key
- Register up to 100 fingerprints, 30 RF Cards and 4 Pin codes (each Pin 4 ~ 12 digits)
- Commax-Korea brand
- Made in Korea
product detail

FUNCTION

  • 4 WAY ACCESS methods (RF Card, Pin number, Finger, Mechanical Key)
  • Durable body using metallic material for protecting against high temp. and shock
  • High Temp. detection, alert and automatic unlocking
  • Multi-Layered authentication (Pin number/RF Card/Finger)
  • Automatic lock / Re-lock / Double lock functions
  • Safe to use the pin number with dummy number
  • Anti high-voltage / anti fireproof / anti-hacking system
  • Connectivity with home network system using remote controller (Option)
  • Emergency power (9V square battery)

SPECIFICATION

Applicable Normal fire door Thickness 35mm ~ 50mm
Access methods Pin number 4~12 digit number combination(Up to 4 pin number)
RF card Up to 30 keys
Finger Up to 100 Fingers
Wireless Remote control from wallpad
Mechanical Key Individual mechanical lock
Power source DC 6V Alkaline AA battery,
8pcs (LR6 1.5V AA size)
Emergency DC 9V Alkaline battery (Optional)
Type of product Fireproof type, Temperature sensor type, Key type, Master key door lock
Temperature alarm Temperature sensor 60 degree ± 5 degree (Normal test)
Option Remote module(CDL-447)
Dimension(mm) 310(H)×65(W)×75(D)

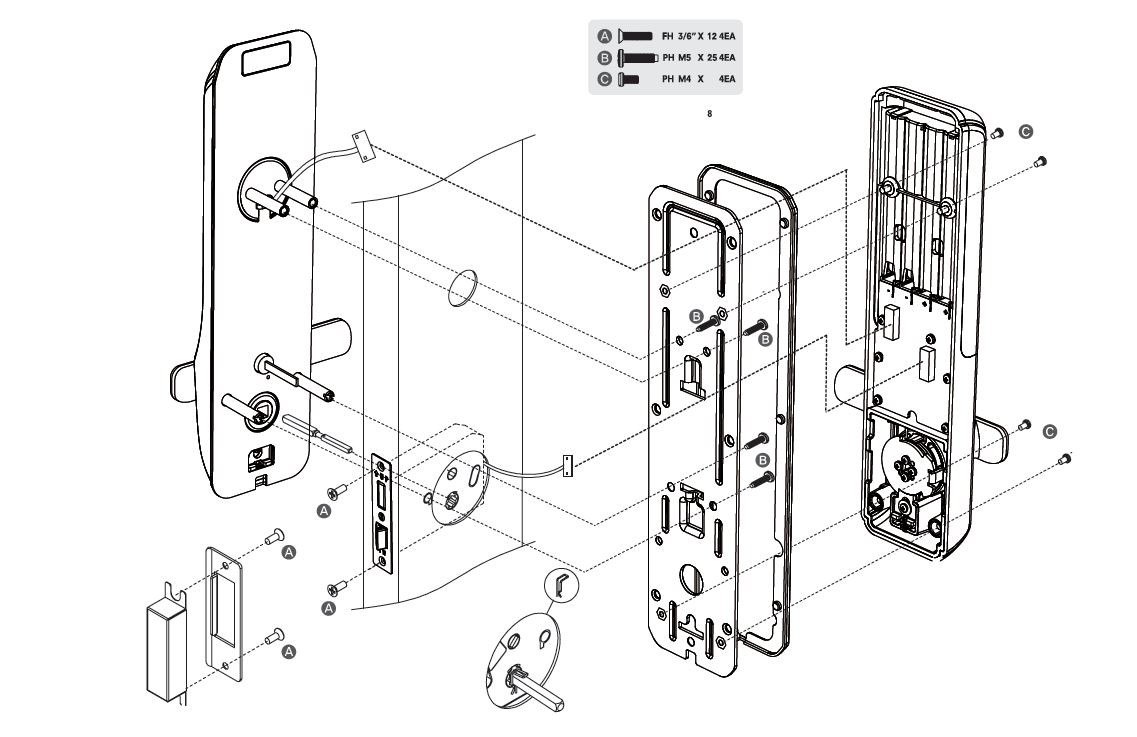

INSTALLATION
