Product Info:

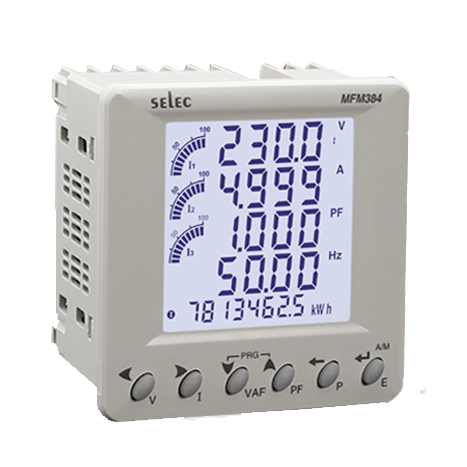

Model:  MFM384-C (96x96)

• Measure: V, A. Hz, Pf, kW, kVA, kVAr, kWh, kVArh, kVAh và đo kWh, kVAh & kVArh
• THD measure
• Display: 4 row, 4 digit LCD with backlight
• Line 5: 8 digit  (only for energy)
• CT Ratio seting: 1A / 5A - 10.000A
• Network Connection: 3P4W, 3P3W, 2P3W & 1P2W
• Output: Pulse output Voltage / Current - 24VDC /  100mA
• Accuracy: Class 1
• PT Primary Ratio Seting: 100V - 500kV
• PT Secondary Ratio Seting: 100 - 500V AC (L-L)
• Power Supply: 85 - 270V AC
• Communication with MODBUS - RS485
