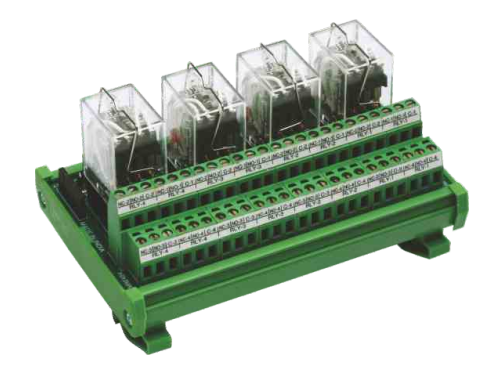

Product information:

Model: IMRE4SS1 / IMRE4SS2 / IMRE4SS4 / IMRE4SS8

Number of channels: from 1 - 8 channels

There are leds showing status messages

Operating temperatures range from -20oC to 50oC

Connection wire section: 0.5 - 2.5 mm2

Voltage voltage coil level coil: 24VDC, 110VAC, 230VAC

Relay parameters:

Rated current: 5A @ 230 VAC; 5A @ 30 VDC

Rated pressure: 250 VAC, 125 VDC

Frequency without switching power: 18000 times / 1 hour

Frequency of switching and switching power: 1800 times / 1 hour

Mechanical life: 20,000,000 times for DC coil & 10,000,000 times for AC coil

Electricity life: 100,000 times
