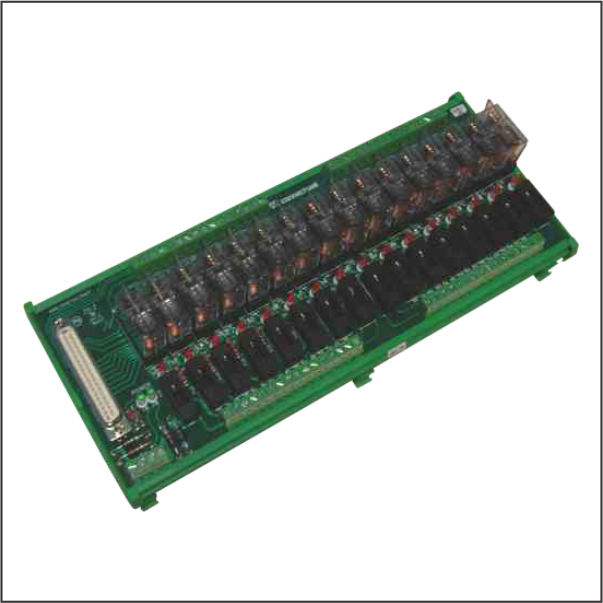

Number of channels: 16

W width (mm): 120

Height H (mm): 74

Length L (mm): 261

There are indicator lights showing status

Operating temperature -20oC ... 50oC

Wire section connection: 0.5 - 2.4 sq.mm

Connection wire parameters

+ Nominal line: 3A (maximum)

+ Nominal voltage: 250 VAC

+ Permissible pulse voltage: 1000 VAC within a minute

Relay parameters:

Rated voltage and current

Relay contact parameters:

+ Current and rated voltage: 10A @ 230 VAC / 10A @ 30VDC

+ Mechanic age: 200,000,000 operations for DC coil / 10,000,000 for AC coil

+ Electrical life: 100,000 activities
