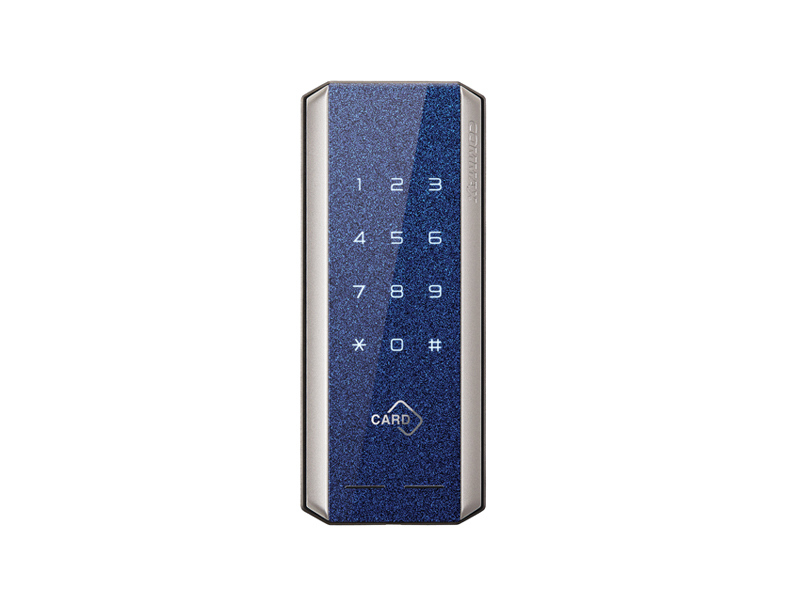

SMART DOOR LOCK CDL-1AR
- Touch key with easy-to-identify background LED
- 2 unlocking methods: Password, RFID Card
- Register up to 30 RF Cards and 4 Pin codes (each Pin 4 ~ 12 digits)
- Commax-Korea brand
- Made in Korea
product detail

FEATURES

  • HIGH TEMPERATURE/FIRE PROTECTION SYSTEM

    If the temperature is higher than certain temperature, the door will be open automatically with warning sounds under the fire

  • DURABLE BODY

    Use die casting material suitable for door lock with high durability against external shock and high temperature

  • INVALIDATION OF TOUCH FUNCTION

    Invalidate residual fingerprint to protect pin number after input the pin number

FUNCTION

  • 2WAY ACCESS methods (RF Card, Pin number)
  • Durable body using metallic material
  • Automatic lock / Re-lock / Double lock functions
  • Safe to use the pin number with dummy number
  • Multi-registrations for pin-number & electronic key
  • Multiple volume control / optional mute
  • Easy to detectable Blue-light button
  • Emergency power (9V square battery)
  • Anti high-voltage / anti fireproof / anti-hacking system

SPECIFICATION

Applicable Normal fire door Thickness 35mm ~ 50mm
Access methods Pin number 4~12 digit number combination(Up to 4 pin number)
RF card Up to 30 keys
Emergency key Can be used under out of battery
Power source DC 6V Alkaline AA battery,
4pcs (LR6 1.5V AA size)
Emergency DC 9V Alkaline battery (Optional)
Wireless devices For safe system
(CDL-2ARC)
447.275Mhz
Type of product Anti-fireproof type, Temperature sensor type, Key type, Secondary Master key door lock
Temperature alarm Temperature sensor 62 degree ± 5 degree (Normal test)
Dimension(mm) 163(H)×69(W)×18.5(D)
