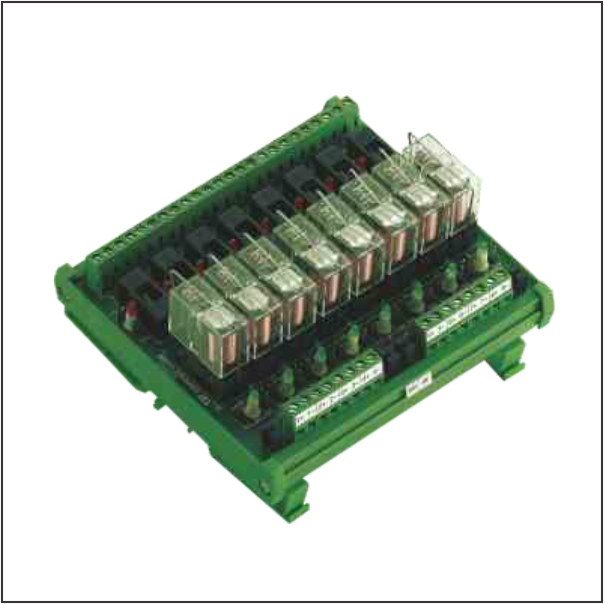

Product information:

Model: IMRE1SSF1 / IMRE1SSF2 / IMRE1SSF4 / IMRE1SSF8 / IMRE1SSF16

Number of channels: from 1 - 16 channels

There are leds showing status messages

Operating temperatures range from -20oC to 50oC

Connection wire section: from 0.5 - 2.5 mm2

Coil coil voltage: 12VDC, 24VDC, 110VAC, 230VAC

Relay parameters:

Rated current:

1CO: 10A @ 230 VAC; 10A @ 30 VDC

2CO: 5A @ 230 VAC; 5A @ 30 VDC

Rated pressure: 380 VAC, 125 VDC

Frequency without switching power: 18000 times / 1 hour

Frequency of switching and switching power: 1800 times / 1 hour

Mechanical life: 20,000,000 times for DC coil & 10,000,000 times for AC coil

Electricity life: 100,000 times
