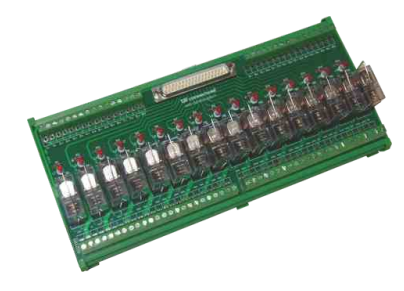

Product information:

Model: IMRE1SS16 / 24 / DM37 - IMRE2SS16 / 24 / DM37

Number of channels: 16 channels

There are leds showing status messages

Operating temperatures range from -20oC to 60oC

Connection wire section: 0.5 - 2.5mm2

Coil rated voltage coil: 24VDC

Parameter of connecting line to DSUB:

Rated current: 3A

Rated pressure: 250 VAC

Output connection wire size: from 0.5 - 2.5 sq.mm

Relay parameters:

Rated current: 10A @ 230 VAC; 10A @ 30 VDC

Rated pressure: 380 VAC, 125 VDC

Frequency without switching power: 18000 times / 1 hour

Frequency of switching and switching power: 1800 times / 1 hour

Mechanical life: 20,000,000 times for DC coil & 10,000,000 times for AC coil

Electricity life: 100,000 times
